- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://www.asus.com/au
- Brand Name
- Asus ROG
- Product Line
- Strix
- Product Type
- Graphic Card

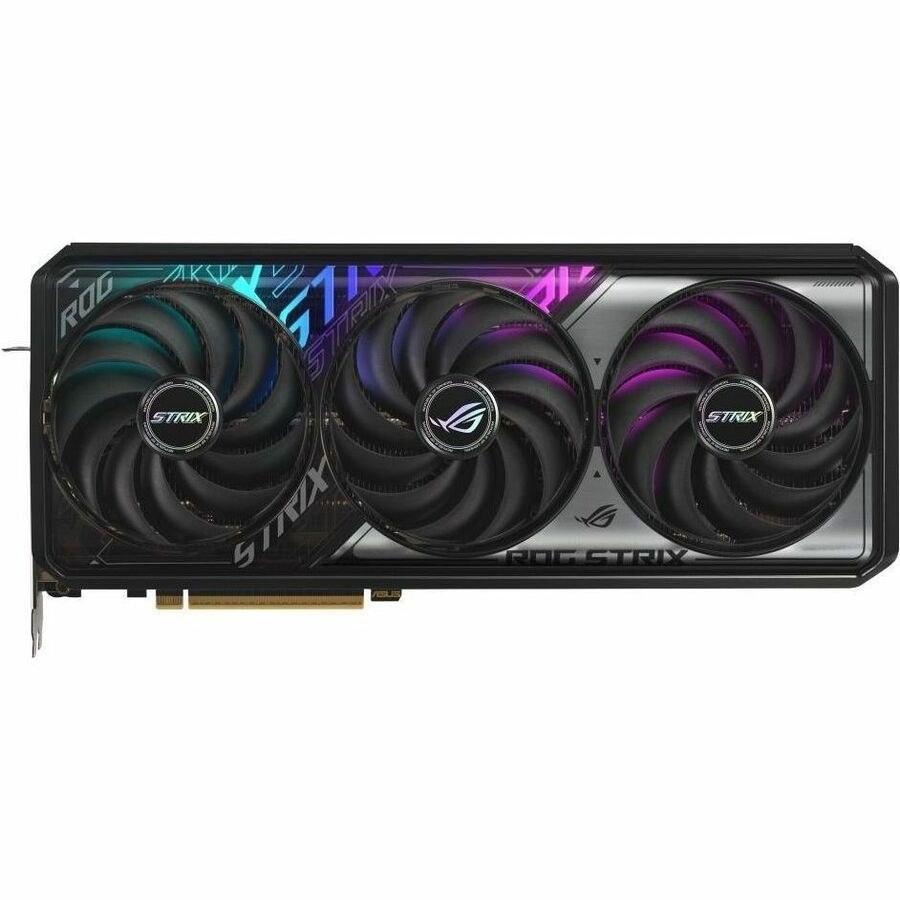

ROG Strix GeForce RTX™ 5070 Ti 16GB GDDR7 OC Edition
The ROG Strix GeForce RTX™ 5070 Ti OC Edition 16GB GDDR7 with advanced cooling system provides you premium power delivery.
- AI Performance: 1492 AI TOPS
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- OC mode: 2625 MHz (OC mode)/ 2602 MHz (Default mode)
- 3.2-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Axial-tech fans have been scaled up to propel 31% more air through the card to reach higher performance.
- 0dB technology lets you enjoy light gaming in relative silence
- Max Contact design with vapor chamber ensures efficient heat transfer, providing a premium performance
- Phase-change GPU thermal pad helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability.
- Premium power delivery with digital power control and 15K caps ensure high performance.
- Protective PCB Coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
- Aura Sync features Aura-compatible ARGB lighting on the shroud and perimeter allows endless personalization.
- GPU Tweak Isostere provides intuitive performance tweaking, advanced thermal control and system monitoring
- Technical Information
- API Supported
- OpenGL 4.6
- Number of Monitors Supported
- 4
- Features
- Triple-fan Cooler
- Maximum Digital Display Resolution
- 7680 x 4320
- CUDA Cores
- 8960
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- NVIDIA
- Chipset Line
- GeForce
- Chipset Series
- RTX
- Chipset Model
- RTX 5070 Ti
- GPU Boost Clock
- 2.63 GHz
- Memory
- Standard Memory
- 16 GB
- Memory Technology
- GDDR7
- Bus Width
- 256 bit
- Interfaces/Ports
- Host Interface
- PCI Express 5.0
- DisplayPort
- Yes
- Number of DisplayPort Outputs
- 3
- HDMI
- Yes
- Number of HDMI Outputs
- 2
- Power Description
- Power Supply Wattage
- 850 W
- Power Connector
- 1x 16-pin
- Physical Characteristics
- Slot Space Required
- Triple
- Form Factor
- Plug-in Card
- Cooler Type
- Fan Cooler
- Height
- 64 mm
- Width
- 147.3 mm
- Length
- 332 mm
- Miscellaneous
- Package Contents
- Strix GeForce RTX 5070 Ti 16GB GDDR7 OC Edition Graphic Card
- 1 x Speedsetup Manual
- 1 x ROG Graphics Card Holder
- 1 x ROG Velcro Hook & Loop
- 1 x ROG Magnet
- 1 x ROG PCB Ruler
- 1 x Thank You Card
- 1 x Power Cable (1 to 3)
- Platform Supported
- PC
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
