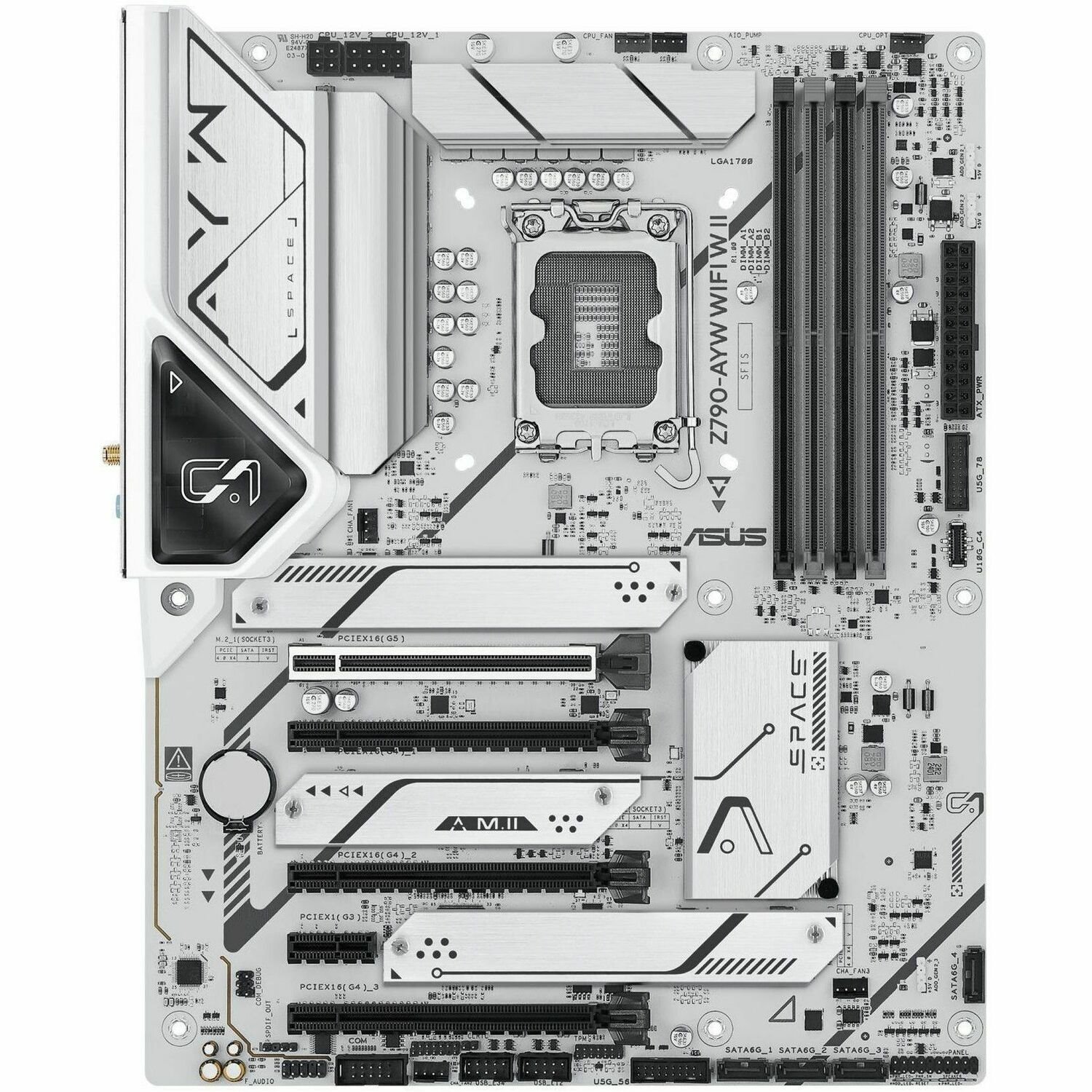

ASUS Z790 series motherboards are expertly engineered to unleash the full potential of 14thGen Intel®Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Z790-AYW WIFI W II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Z790 series. The Z790-AYW WIFI W II motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
COOLING
Z790-AYW WIFI W II motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsinks
Three M.2 heatsinks cover three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.
PERFORMANCE
The Z790-AYW WIFI W II motherboard is built to handle the high core counts and bandwidth demands of 14th& 13thGen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Robust Power Design
Stable power is essential to extract every last bit of performance out of Intel processors. The Z790-AYW WIFI W II is geared to cater to the demands of these high-core-count CPUs.
ProCool Connectors
Proprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
CUSTOMIZATION
The Z790-AYW WIFI W II motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://www.asus.com/au
- Brand Name
- Asus
- Product Type
- Desktop Motherboard
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Z790
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1700
- Processor Generation Supported
- 14th Gen
- 13th Gen
- 12th Gen
- Processor Supported
- Pentium Gold
- Celeron
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 192 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 7800 MHz
- 7600 MHz
- 7400 MHz
- 7200 MHz
- 7000 MHz
- 6800 MHz
- 6600 MHz
- 6400 MHz
- 6200 MHz
- 6000 MHz
- 5800 MHz
- 5600 MHz
- 5400 MHz
- 5200 MHz
- 5000 MHz
- 4800 MHz
- Error Checking
- ECC
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.3
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11ax
- I/O Expansions
- Total Number of Expansion Slots
- 5
- PCI Express Standard
- PCI Express 5.0
- PCI Express 4.0
- PCI Express 3.0
- Total Number of PCI Express Slots
- 5
- Number of PCI Express x1 Slots
- 1
- Number of PCI Express x16 Slots
- 4
- Interfaces/Ports
- Total Number of USB Ports
- 8
- S/PDIF
- Yes
- HDMI
- Yes
- HDMI Version
- 2.1
- Number of Network (RJ-45) Ports
- 1
- Thunderbolt
- Yes
- Number of Thunderbolt 4 Ports
- 2
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 3
- Total Number of Onboard USB Ports
- 9
- Number of Onboard USB 2.0 Ports
- 4
- Physical Characteristics
- Form Factor
- ATX
- Width
- 304.8 mm
- Depth
- 243.8 mm
- Miscellaneous
- Package Contents
- Z790-AYW WIFI W II Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x ASUS Wi-Fi moving antenna
- 2 x M.2 rubber packages
- 1 x Screw package for M.2 SSD
- 1 x Quick start guide
- Brand Compatibility
- Intel
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
