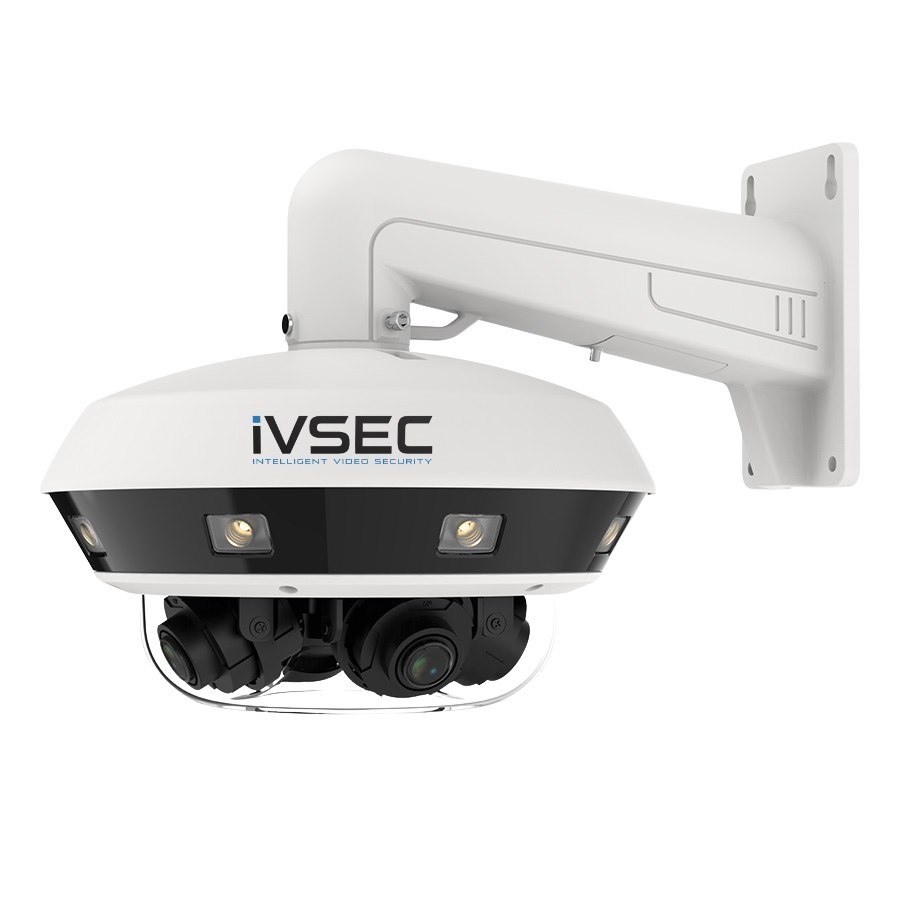

NC540ADX Security Camera
Experience cutting-edge surveillance with our state-of-the-art CCTV camera. Boasting four adjustable lenses within a single unit it offers an expansive 360° field of view ensuring no corner goes unnoticed. Each channel delivers remarkable clarity with a maximum output of 8MP at 30FPS capturing even the tiniest details. Thanks to its starlight technology it excels in low-light conditions. Its All-In-One design combines power and efficiency enabling multiple intelligent functions concurrently. With a built-in dual-source illuminator featuring both IR and warm light this camera guarantees around-the-clock vigilance. Furthermore its IP67/IK10 ratings make it resilient against water weather and vandalism ensuring reliable security year-round.
In addition this camera is fully NDAA-compliant; this ensures that the device meets stringent standards for use in government eductional and high security applications.
| Camera Type | 360 |
| Image Sensor | 1/2.7″ Progressive CMOS x 4 |
| Maximum Video Resolution Megapixels | 8 x 4 |
| Maximum Video Resolution | 2880 x 1620 x 4 |
| Frames Per Second FPS | 25 |
| Lens | 2.8mm – 12mm H.FOV 35 to 112° |
| Lens Type | Motorised Zoom |
| Maximum Night IR Distance M | 30 |
| LED | IR Warm White |
| Video Compression | H.265 H.265 H.264 H.264 MJPEG |
| ONVIF depends on firmware version | ONVIF Profile S/G/T/M 21.12 or greater HTTP API |
| Accessories | IV2491X included IV2444X IV2488X |
| Outdoor Use | Yes |
| IP Rating | IP67 |
| Vandal Resistant | Yes IK10 |
| Day/Night Mode | Auto |
| Image Enhancement | Rotate Saturation Brightness Contrast Sharpness White Balance BLC 3D DNR HLC |
| Intelligent Video IVS | Motion Detection Face Recogniton Pedestrian & Vehicle Detection Line Crossing Object Detection Cross Counting Heat Map Crowd Density Queue Length License Plate Recognition Intrusion Region Entrance Region Exiting |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams encode format | 3 Streams |
| Software | Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code |
| Protocols | IPv4/IPv6 TCP/IP UDP HTTP HTTPS DHCP FTP SMTP UPnP DNS DDNS NTP PPPOE RTP/RTSP SNMP SMTP P2P QR Code |
| Language | English French Spanish Portuguese German Italian Greek Danish Finnish Russia Hebrew Turkish Bulgarian Arabic Korean Japanese Thai Hindi Romanian Dutch Polish |
| Cloud option camera only | Dropbox |
| Audio Streaming | Yes – input connector for external mic |
| Ethernet | Ethernet 10/100/1000 Base-T |
| Power |
