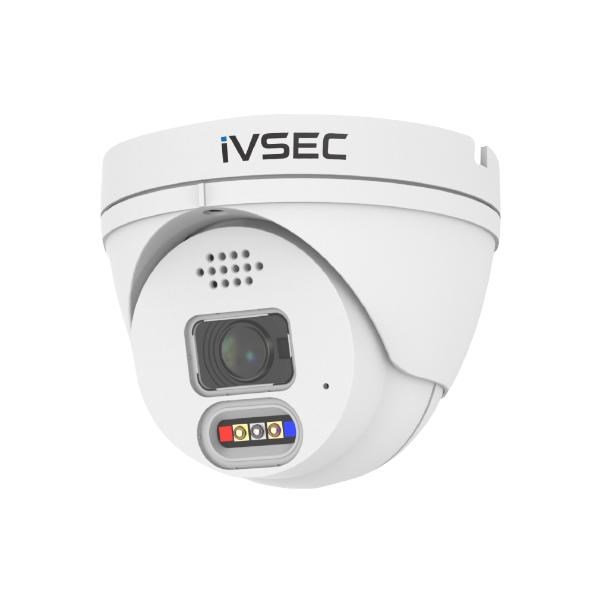

NC110ADX Security Camera
This wide-angle lens camera is perfect for most locations. Includes Advanced Deterrent features -red/blue strobing lights and siren Speak to talk through the mobile app or set off the siren full colour at night robust metal housing quality AI for Human and Vehicle Detection -a step-up from standard Smart Motion Detection with greater range of detection and reduced false notifications.
| Camera Type | Turret |
| Image Sensor | 1/2.7″ Progressive CMOS |
| Maximum Video Resolution Megapixels | 5 |
| Maximum Video Resolution | 2880 x 1620 |
| Lens | 2.8 mm H.FOV 110° |
| Lens Type | Fixed |
| Maximum Night IR Distance M | 25 |
| Video Compression | H.265 H.265 H.264 H.264 MJPEG |
| ONVIF depends on firmware version | ONVIF Profile S/G/T 21.12 or greater Http API |
| IP Rating | IP66 |
| Operating Environment | -35ºC to 60ºC 31ºF-140ºF Humidity 20-95 RH |
| Dimensions | 100×100 mm |
| Weight Net | 0.425 |
| Accessories | IV2422X IV2477X IV2433X IV2444X IV2455X IV2457X |
| Power Supply | Power over Ethernet IEEE 802.3af DC12V |
| Power Consumption | <4.2W |
| Connectors | RJ-45 DC Power Input Reset Button |
| Outdoor Use | Yes |
| Vandal Resistant | Yes |
| Frame Rate at Resolution | 25 |
| Day/Night Mode | Schedule Time Based Full colour White LEDS or Day/Night IR LEDS |
| LED Types | IR Warm White Red and Blue |
| Image Enhancement | SMART IR Flip mode Brightness Contrast Saturation Sharpness Hue Mirror Angle Flip Corridor Mode Back Light White Balance Shutter Time Exposure Defog 3D Noise Reduction |
| Edge Recording microSD/SDHC Card | Micro SD/SDHC Card |
| Multiple Streams encode format | 3 Streams |
| Audio Streaming | Two-way audio microphone with a distance up to 8m and speaker included |
| Protocols | TCP/IP UDP HTTP HTTPS DHCP FTP RTP/RTSP DNS DDNS NTP PPPOE UPNP SMTP SNMP P2P QR code |
| Intelligent Video IVS | Perimeter Intrusion Detection Face Recognition Human & Vehicle Detection Line Crossing Detection Stationary Object Detection Crossing Counting Heat Map Crowd Density Detection Queue Length Detection License Plate Detection Rare sound detection |
| Cloud option camera only | Dropbox |
| Software | Device Search/Config Tool Surveillance Client CMS/VMS Mobile app QR code |
| Power Over Ethernet | Yes |
| Ethernet | Ethernet 10/100 Base-T |
| In The Box | Free Software available ivsecurity.com.au/support/software Printed quick user guide installation template mounting screws and plugs |
| Warranty | 3 Year Warranty |
