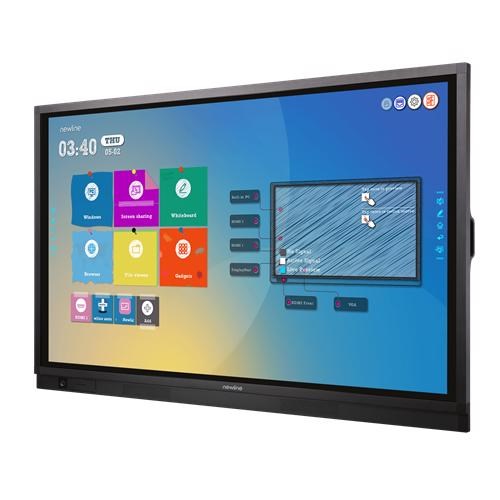

TT-7518RS

TRUTOUCH RS series

Interactive Display
Let the versatile 4K UHD interactive display bring more collaboration and student engagement to your classroom. Turn the display into a digital whiteboard, share, and use your favorite software all with a single touch. TRUTOUCH RS works in your world and lets you interact your way.

Interaction made easy.
TRUTOUCH RS series brings efficiency to your classes and teams so you can interact with ease, anytime. With a lightweight slim frame design, Windows system and built-in OS support, embedded tools and a personalized user interface, it’s the perfect solution to seamless collaboration in school and in the office.

• Cast:Present wirelessly from any network with a single click. Share video, links, and files from any device.
• Broadcast: Broadcast content or present wirelessly from a personal device, and invite up to 200 participants to connect from their own.
• Display Management: Centrally manage and deploy apps, configure settings, use digital signage and broadcast messages to all your Newline displays.
• Launchcontrol: Enable the proximity sensor to quickly launch your calendar, meetings and preferred on-screen applications as soon as you reach the display.
• Workspace: Collaborate, annotate and co-edit documents with colleagues in different locations through video-chat, whiteboard and document editing.

Buit-In Apps
Everything you need to schedule meetings, manage e-mails, save and open files with the cloud and work on documents, all with Newline’s built-in apps. Collaborate locally and remotely, easily.

Unlimited Interaction
Up to 20 points of smooth, responsive touch allow multiple users to interact simultaneously. Anyone can take notes, write and draw on the screen at any time, making the classroom a truly collaborative space

Intelligent Touch Experience
Object Recognition brings an intuitive writing experience for everyone. Write with a thin pen, erase with your palm, and set memory functions. Collaborate easily, creatively and comfortably without limitations.

All-Around Engagement
All the tools you need for engaging presentations and interactive collaboration in a single display. Cast device screens and share files wirelessly or with a variety of cables to enable truly productive teamwork.

Specifications

Display

• Active Screen Size: 75"
• Backlight: LED
• Display Area: 1652 × 930 mm
• Display Ratio 16:9
• Resolution: 3840 × 2160 Pixels
• Display Color Depth: 8-bit
• Brightness: 370 nit
• Contrast Ratio: 4000:1
• Response Time: 8 ms
• Viewing Angle: 178°
• Life Time: ? 30,000 hours

Power

• Power Consumption: Maximum = 400 W Standby Mode = 0.5 W
• Working Voltage: AC 100-240 V, 50/60 Hz

Touch

• Touch Surface: Anti-Glare Glass
• Transparency: > 88%
• Haze: 2% - 5%
• Surface Hardness: 7H
• Touch Technology: Infrared Touch
• Touch Points: 20 Points in Windows/ 10 Points in Android
• Writing Tools: Passive Pen/ Finger/ Palm
• Positioning Accuracy: ±2 mm
• Communication Interface: USB-A

Speaker

• Speaker Position: Front
• Rated Impedance: 8 O
• Frequency Response: 180 - 20K Hz
• Max. Power Output: 15 W × 2

Environmental/ Physical

• Storage Temperature/ Humidity: -15? - 55?/ 20 - 90% RH
• Working Temperature/ Humidity: 0? - 40?/ 20 - 80% RH
• Mounting (Optional): Wall Mount/ Floor Stand
• Outline Dimensions: 1770 × 1071 × 109 mm
• Packing Dimensions: 1920 × 1195 × 275 mm
• Net Weight: 56 kg
• Gross Weight: 71 ± 2 kg
• VESA Mount Installation Position: 800 × 400 mm
• Intelligent Thermo-Protector: Yes
• OPS PC: Available
• Wi-Fi Dongle: Available
• Trucast Express (Screen Sharing): Available

Connectivity

• Front Interface Inputs: HDMI 1.4 × 1, USB(Touch) × 1, USB(Dynamic) × 2, MIC × 1
• Rear AV Inputs: HDMI 2.0(4K@60Hz) × 2, DP 1.2(4K@60Hz) × 1, VGA(1920x1080@60Hz) × 1, PC Audio × 1, USB(Touch) × 4
• AV Outputs: HDMI Out (Support 4K@60Hz) × 1
• Other: USB 2.0(Dynamic) × 1, USB 3.0(Dynamic) × 1, USB 2.0 Embedded × 1, RS232 × 1, RJ45 × 2, OPS Slot(4K@60Hz) × 1, DC 5V-2A Out, Line Out × 1, SPDIF Out × 1
