Superior Flexibility for Easy Installation

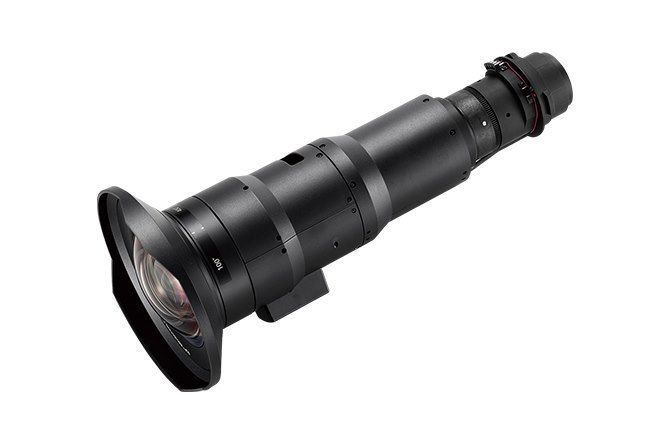

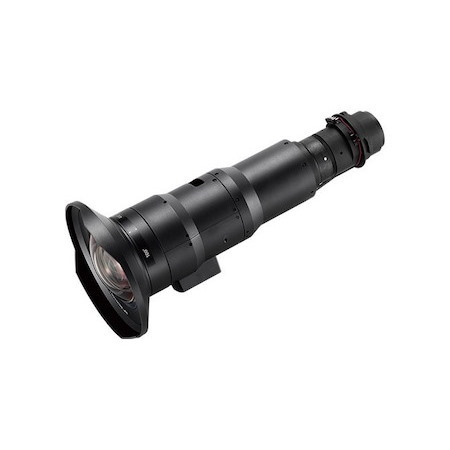

Conventional ultra-short-throw lenses demand accurate time-consuming projector installation positioning with no margin for error. The ET-DLE020’s optical zoom however provides an installation margin of ±45 mm ±1.77&733; and easy image adjustment at a throw-ratio of 0.280–0.2991 WUXGA 1610 all with zero image offset. It combines with Panasonic laser projectors1 to support Wide-range Vertical and Horizontal Lens-Shift more than doubling movable shift area of comparable lenses increasing installation flexibility and expediting setup.
High Reliability for Continuous Operation
The ET-DLE020 features an aspherical all-glass lens that’s heat- and scratch-resistant. Durable construction enhances reliability for long-term use and when combined with our dust-resistant laser projectors assures consistently brilliant images under continuous operation.
Please refer to the specifications page to check projectors compatible with ET-DLE020/DLE020G.
On-Axis Rear Projection
The ET-DLE020’s straight mirrorless design makes screen-centered projector installation possible in rear-projection applications.
Note Hot spots may occur depending on the screen.
Zero Offset and Flexible Setup for Multi-Screen Projection
Install your Panasonic 1-Chip DLP™ laser projector on-ceiling and close to the wall for full top-to-bottom screen coverage with zero offset and minimal shadowing even in low-ceiling applications. Zoom and wide-range V/H Lens Shift joins flexible edge-blending adjustment for multi-screen projection.
