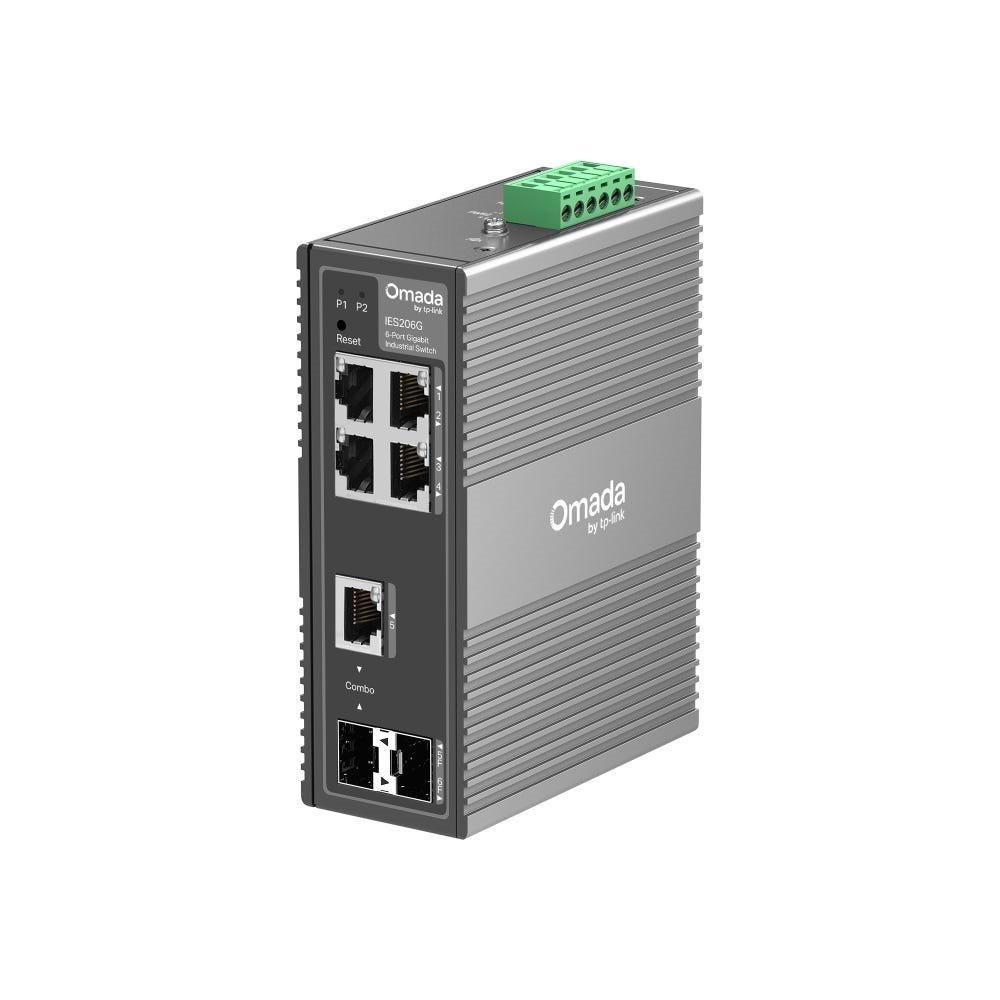

Engineered for harsh industrial environments, the TP-Link IES206G Omada 6-Port Gigabit Industrial Easy Managed Switch delivers robust performance and reliability. Its rugged IP40 aluminium enclosure protects against vibration and physical impact, while the fanless design prevents dust ingress. Capable of operating in extreme temperatures ranging from -40 to 75°C, this switch is ideal for factory floors, outdoor surveillance cabinets, and other challenging settings where standard equipment would fail. The device also features 6kV lightning protection to safeguard your network against voltage spikes.
Connectivity is versatile and high-speed with six Gigabit ports, comprising four RJ45 ports, one dedicated SFP slot, and one combo RJ45/SFP Gigabit slot. This configuration allows for flexible fibre and copper connections, supporting long-distance uplinks and diverse network topologies. To ensure uninterrupted operation in mission-critical applications, the IES206G supports 1+1 redundant power inputs with a wide voltage range of 9.6V to 60VDC. This redundancy guarantees that if one power source fails, the switch continues to operate seamlessly.
Integration with the Omada Software Defined Networking (SDN) platform provides centralised cloud management, allowing for easy remote monitoring and configuration via the Omada app or Web UI. This smart management system enables Zero-Touch Provisioning (ZTP) and intelligent network monitoring. The switch is packed with L2 features such as 802.1Q VLAN, QoS for traffic prioritisation, IGMP Snooping, and STP/RSTP, ensuring a secure and stable network structure tailored to your specific business needs.
Installation is flexible with support for both DIN-rail and wall mounting, making it easy to deploy in compact control cabinets. The intelligent design includes advanced multicast filtering and efficient bandwidth control to optimise data flow. With its combination of industrial-grade hardware and comprehensive management software, the TP-Link IES206G offers a professional solution for expanding your industrial network infrastructure.
FEATURES
- Rugged IP40 aluminium metal casing
- -40 to 75°C wide operating temperature range
- 1+1 Redundant power inputs (9.6-60VDC)
- Omada SDN integration for centralised cloud management
- 6kV lightning protection
- Fanless design for silent and dust-free operation
- DIN-Rail and wall-mountable
- Intelligent monitoring and Zero-Touch Provisioning
SPECIFICATIONS
- Interface: 4x 10/100/1000Mbps RJ45 Ports, 1x Gigabit SFP/RJ45 Combo Slot, 1x Gigabit SFP Slot
- Switching Capacity: 12Gbps
- Packet Forwarding Rate: 8.93Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4Mbit
- Jumbo Frame: 15KB
- Dimensions: 129mm x 95mm x 45mm
- Power Supply: 9.6-60V 1+1 Redundant DC Power Input
- Max Power Consumption: 6.9W (24VDC), 8.3W (48VDC)
- Operating Temperature: -40 to 75°C
- Surge Protection: ±6kV (Ethernet ports), ±4kV (Power ports)
- Installation: DIN-Rail, Wall Mount
- Certification: CE, FCC, RoHS
WARRANTY
5-Year Limited Warranty
