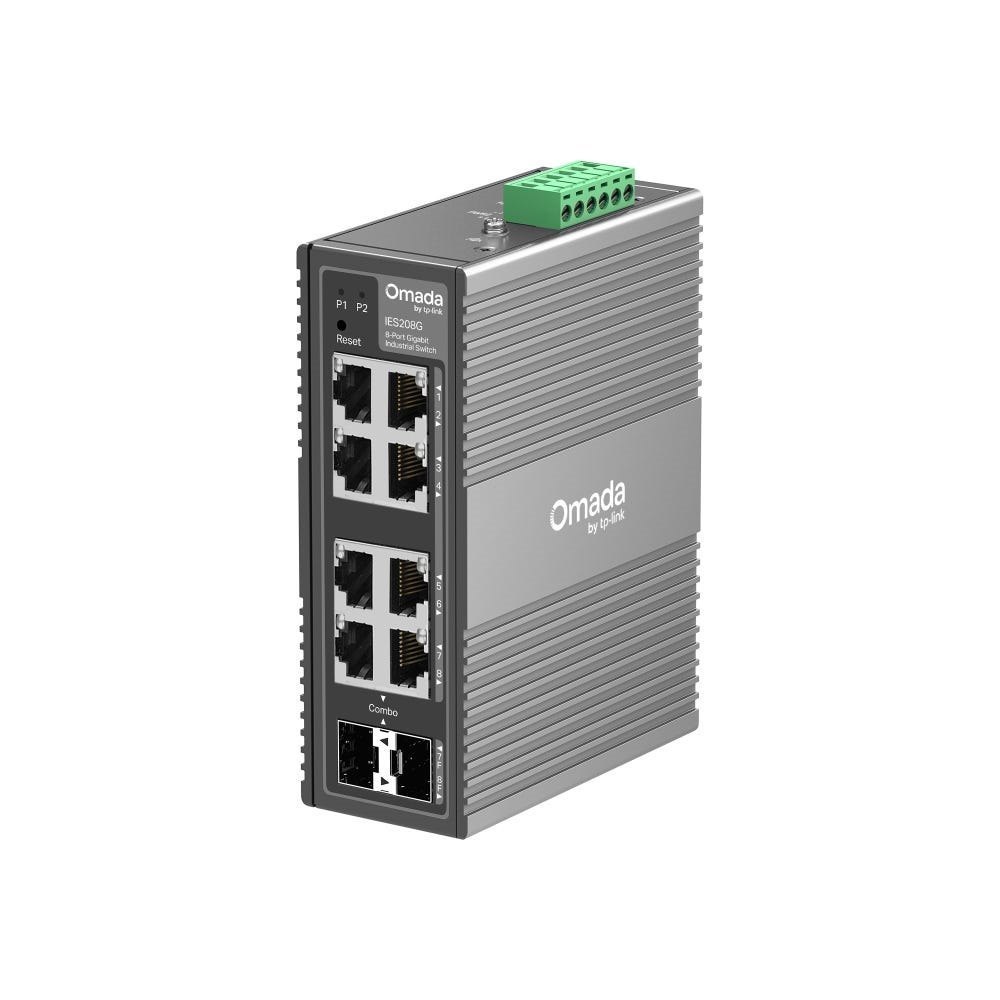

The TP-Link IES208G Omada 8-Port Gigabit Industrial Easy Managed Switch is engineered to deliver reliable networking in the harshest environments. Built with a rugged IP40 aluminium enclosure, this switch withstands extreme temperatures ranging from -40 to 75°C. It is the ideal solution for factories, warehouses, and outdoor surveillance systems where standard equipment would fail. The fanless design ensures quiet operation while preventing dust ingress, further enhancing its durability and lifespan in industrial settings.
Equipped with eight Gigabit ports, including six RJ45 ports and two Gigabit SFP/RJ45 combo slots, the IES208G offers flexible connectivity options for various network layouts. The combo ports allow for fibre uplinks, extending your network over long distances without signal degradation. With high-performance switching capacity and packet forwarding rates, it handles data-intensive applications smoothly, ensuring your critical industrial operations remain online and efficient.
Integration with the Omada Software Defined Networking (SDN) platform sets this industrial switch apart. It supports centralised cloud management, allowing you to monitor and control your network via the Omada app or web interface from anywhere. Features like Zero-Touch Provisioning (ZTP) and intelligent network monitoring simplify deployment and maintenance. Additionally, the switch supports abundant L2 features such as 802.1Q VLAN, QoS, and STP/RSTP to optimise traffic and enhance security.
To guarantee uninterrupted operation, the IES208G features a dual redundant power input accepting a wide voltage range of 9.6VDC to 60VDC. This 1+1 redundancy ensures that if one power source fails, the other takes over immediately. Combined with 6kV lightning protection and industrial-level surge immunity, this switch provides the robust stability required for mission-critical infrastructure.
FEATURES
- 8 Gigabit ports for high-speed connectivity
- 2 Gigabit SFP/RJ45 combo slots for flexible fibre uplinks
- Rugged IP40 aluminium casing
- Wide operating temperature range of -40 to 75°C
- Omada SDN integration for centralised cloud management
- 9.6-60VDC 1+1 redundant power inputs
- 6kV lightning and surge protection
- DIN-rail and wall-mountable design
- Fanless design for quiet and reliable operation
- L2 features including VLAN, QoS, and STP/RSTP
SPECIFICATIONS
- Interface: 6x 10/100/1000Mbps RJ45 Ports, 2x Gigabit SFP/RJ45 Combo Ports
- Switching Capacity: 16Gbps
- Packet Forwarding Rate: 11.9Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4Mbit
- Jumbo Frame: 15KB
- Power Supply: 9.6-60VDC, 1+1 Redundant Power Input
- Max Power Consumption: 4.96W (approximate)
- Dimensions (W x D x H): 129x95x45mm
- Installation: DIN-Rail, Wall-Mount
- Operating Temperature: -40 to 75°C
- Storage Temperature: -40 to 85°C
- Operating Humidity: 5-95% RH non-condensing
- Surge Protection: ±6kV (Ethernet ports), ±4kV (Power)
- Certification: CE, FCC, RoHS, RCM
WARRANTY
5-Year Limited Warranty
