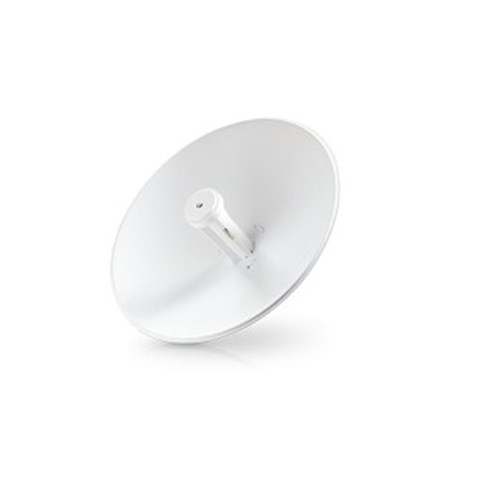

Overview Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 2AC, with dedicated Wi-Fi management. Powerful Wireless Features • High-performance airMAX ac CPE • airMAX ac Protocol Support • Long-Range Point-to-Point (PtP) Link Mode • Selectable Channel Width • PtP: 10/20/40 MHz • PtMP: 10/20/40 MHz • Automatic Channel Selection • Transmit Power Control: Automatic/Manual • Automatic Distance Selection (ACK Timing) • Strongest WPA2 Security Usability Enhancements • airMagic® Channel Selection Tool • Redesigned User Interface • Dynamic Configuration Changes • Instant Input Validation • HTML5 Technology • Optimization for Mobile Devices • Detailed Device Statistics • Comprehensive Array of Diagnostic Tools, Including RF Diagnostics and airView® Spectrum Analyzer Specifications:- Dimensions with Radome 420 x 420 x 289 mm (16.54 x 16.54 x 11.38') Weight (Mount Included) 1.795 kg (4.809 lbs) Power Supply 24V, 0.5A Gigabit PoE Adapter (Included) Max. Power Consumption 7.5W Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return) Supported Voltage Range 22 to 26VDC Gain 18 dBi Networking Interface (1) 10/100/1000 Ethernet Port Processor Specs MIPS 74Kc Memory 64 MB LEDs Power, Ethernet, (4) Signal Strength Channel Sizes PtP Mode PtMP Mode 10/20/40 MHz 10/20/40 MHz Enclosure Characteristics Antenna Feed Dish Reflector Outdoor UV Stabilized Plastic Powder-Coated SPCC Mounting Pole-Mounting Kit (Included) Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph) Wind Survivability 200 km/h (125 mph) ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV Operating Temperature -40 to 70° C (-40 to 158° F) Operating Humidity 5 to 95% Noncondensing RoHS Compliance Yes Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 Vibration Test IEC 68-2-6 Temperature Shock Test IEC 68-2-14 UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1
