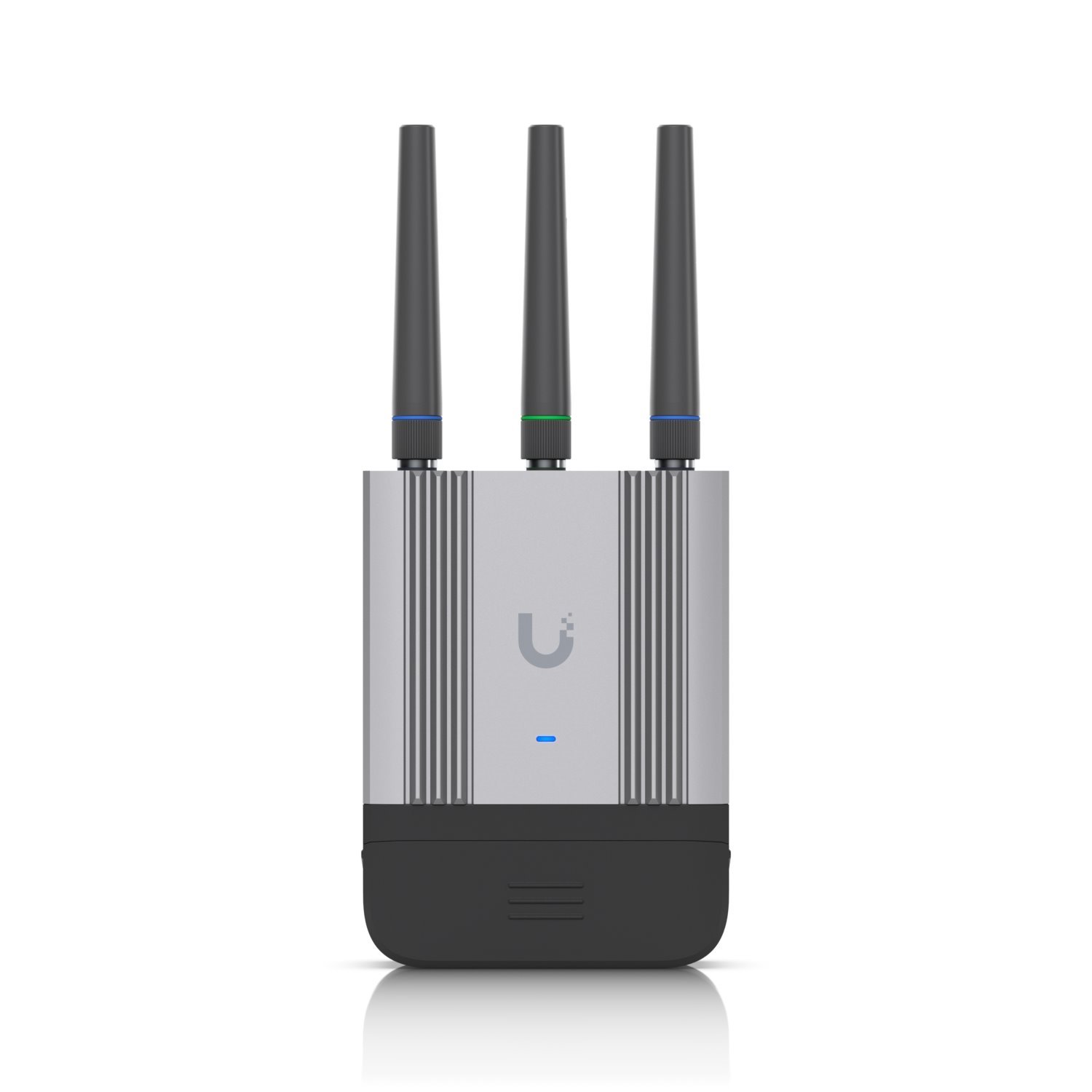

The Ubiquiti UMR-Industrial is a compact and tough LTE Cat 4 mobile Wi-Fi router designed for indoor and outdoor IoT applications. It offers site-to-site VPN and VPN client routing, with automatic failover between LTE, wired WAN, and Wi-Fi WAN. Featuring two GbE ports with one PoE output, it also includes outdoor GPS location tracking. Its flexible mounting options (wall, pole, and DIN rail) and weatherproof cover make it suitable for various environments.

FEATURES

• Site-to-site VPN and VPN client routing
• Automatic failover between LTE, wired WAN, and Wi-Fi WAN
• (2) GbE ports with (1) PoE output
• Outdoor GPS location tracking
• Flexible wall, pole, and DIN rail mounting
• Weatherproof (outdoor exposed) with included cover

SPECIFICATIONS

• Dimensions:
  • Without antennas and outdoor cover: 114.5 x 93.6 x 32mm
  • With antennas: 213 x 93.6 x 32mm
  • With antennas and outdoor cover: 217 x 94 x 32mm
• Weight:
  • Device: 360g
  • Device with outdoor cover: 395g
  • DIN rail/wall mounts: 25g
• Enclosure Material: Polycarbonate, aluminium
• Mount Material:
  • Wall/pole mount: Polycarbonate
  • DIN rail mount: Polycarbonate
• Pole mount diameter: 1-2"
• Wind loading: 38.8N at 200km/h
• Weatherproofing: Device with outdoor cover: IP66
• Management Interface: Ethernet, Wi-Fi
• Networking Interface: (2) GbE RJ45 ports, LTE Category 4 radio, Wi-Fi 4
• PoE Interface: (1) PoE input, (1) PoE output (Max. 10W) *Requires a PoE+ switch
• Power Supply:
  • UniFi PoE switch (48-54V DC)
  • USB Type-C (5V DC)
  • 4-pin ATX DC power socket (9-30V DC)
• Max. Power Consumption: 12.5W
• SIM: nano-SIM (4FF)
• LTE Bands: B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
• LTE Throughput Speed: Download 150Mbps / Upload 50Mbps *Speed depends on network coverage and performance at the device location
• Wi-Fi Standards: 802.11 b/g/n, Wi-Fi 2.4GHz, 20/40MHz
• Max. Wi-Fi TX Power: 22dBm
• Wi-Fi MIMO: 2x2
• GPS: Yes
• Antenna SMA Ports:
  • (1) Mobile 1: SMA female connector, supports 1Tx and 1Rx
  • (1) Mobile 2: SMA female connector, supports 1Rx only
  • (1) GPS: SMA female connector
  • (2) Wi-Fi: RP-SMA female connectors
• External Antennas:
  • (2) Mobile/LTE antennas with SMA male connectors
  • (1) GPS antenna with SMA male connector
  • (2) Wi-Fi antennas with RP-SMA male connectors
• LED: Status: blue/white
• Button: Factory reset
• Mo...
