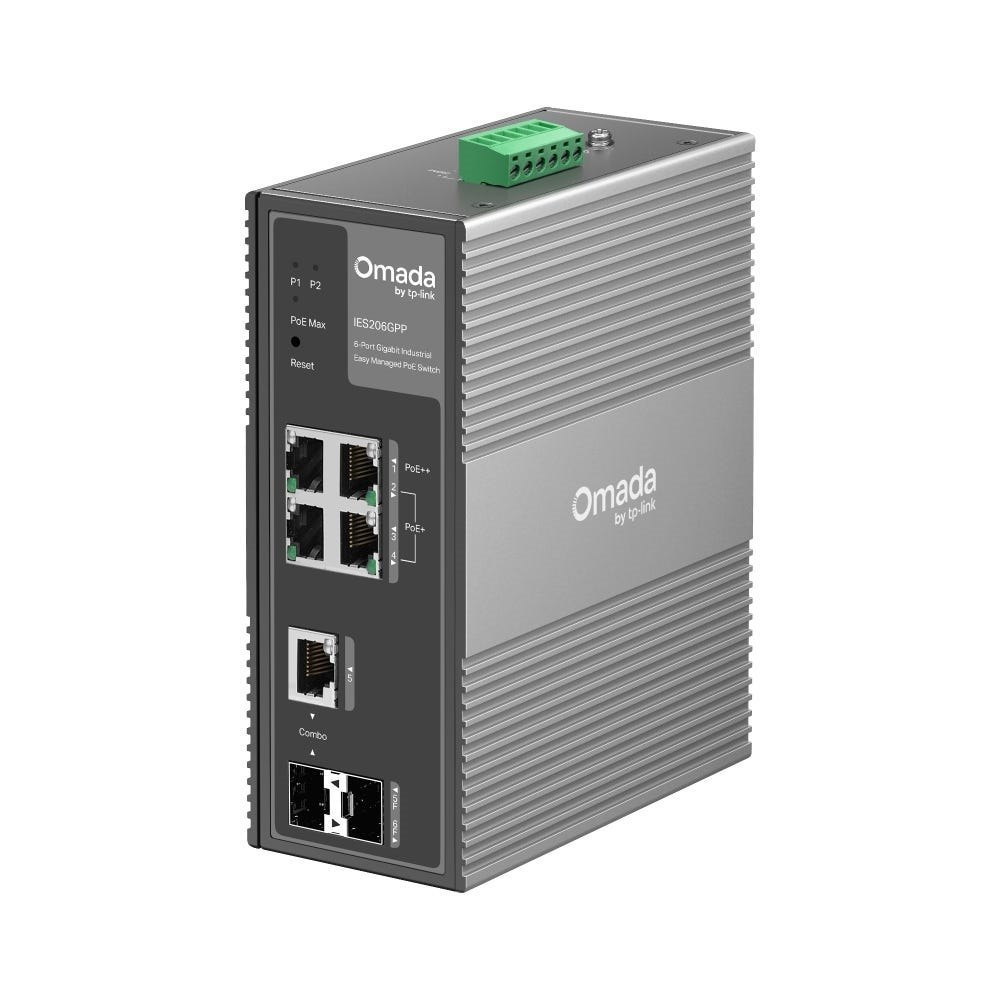

Designed for harsh outdoor and industrial environments, the TP-Link IES206GPP Omada 6-Port Gigabit Industrial Easy Managed Switch delivers robust performance with a 120W PoE budget. This rugged switch features an IP40 aluminium casing and operates reliably in extreme temperatures ranging from -40°C to 75°C, making it ideal for factory automation and outdoor surveillance systems.
Equipped with one PoE++ port supporting up to 60W and three PoE+ ports, it effortlessly powers high-demand devices like PTZ cameras and Wi-Fi 6 access points. The inclusion of a Gigabit SFP/RJ45 combo slot and a dedicated Gigabit SFP slot ensures flexible fibre connectivity for long-distance uplinks.
Seamlessly integrated into the Omada Software Defined Networking (SDN) platform, this switch offers centralised cloud management for easy monitoring and configuration from anywhere. Intelligent features such as VLAN, QoS, and IGMP Snooping optimise network traffic, while dual redundant DC power inputs provide uninterrupted operation.
Installation is versatile with DIN-rail and wall-mounting options included. Comprehensive protection features, including 6kV lightning protection and varying power input support (12-57V DC), ensure long-term reliability in challenging conditions.
FEATURES
- 6 Gigabit ports including 1× PoE++, 3× PoE+, 1× SFP/RJ45 Combo, and 1× SFP slot
- 120W total PoE budget with up to 60W on the PoE++ port
- Rugged IP40 aluminium enclosure withstands -40°C to 75°C
- Centralised cloud management via Omada SDN
- Redundant 12-57V DC power inputs for high availability
- Intelligent management with VLAN, QoS, and IGMP Snooping
- 6kV lightning and surge protection
- DIN-rail and wall-mountable design
SPECIFICATIONS
- Model: IES206GPP
- Interface: 1× 10/100/1000Mbps PoE++ RJ45, 3× 10/100/1000Mbps PoE+ RJ45, 1× Gigabit Combo SFP/RJ45, 1× Gigabit SFP
- PoE Standards: 802.3af/at/bt
- PoE Budget: 120W (Input 21-57V), 60W (Input 12-21V)
- Switching Capacity: 12Gbps
- Packet Forwarding Rate: 8.93Mpps
- MAC Address Table: 8K
- Jumbo Frame: 15KB
- Power Supply: 12-57V DC Redundant Inputs
- Dimensions: 155mm x 120mm x 60mm
- Installation: DIN-Rail, Wall Mount
- Operating Temperature: -40°C to 75°C
WARRANTY
5-Year Manufacturer Warranty
